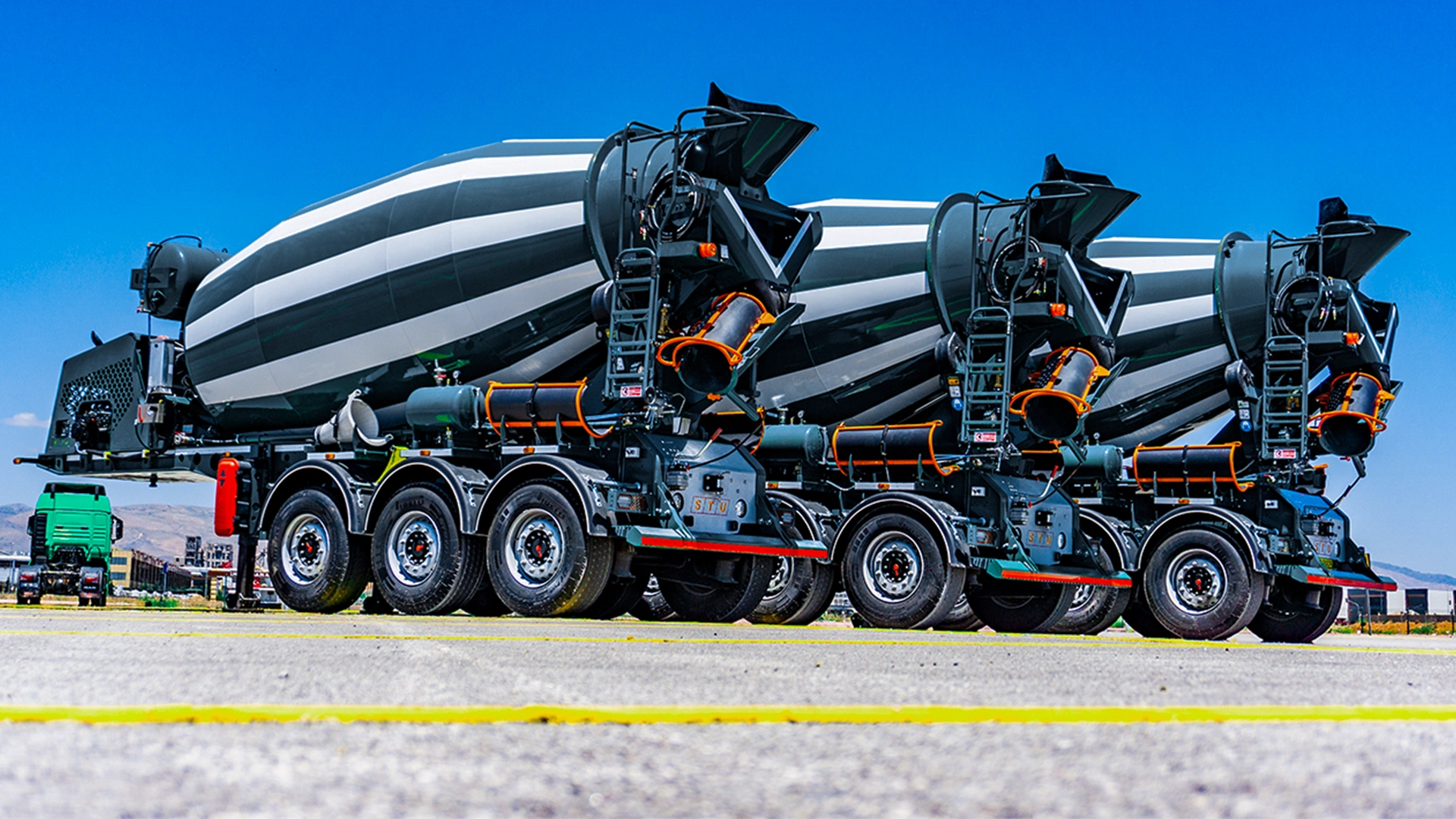

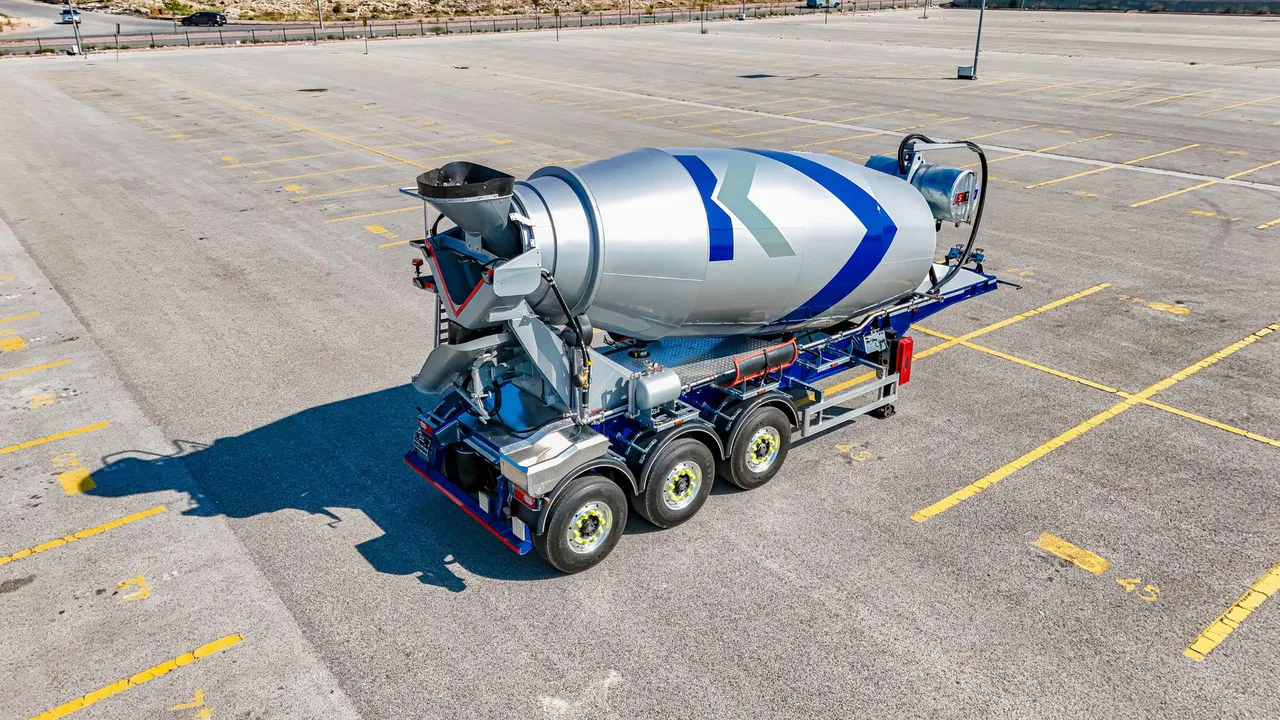

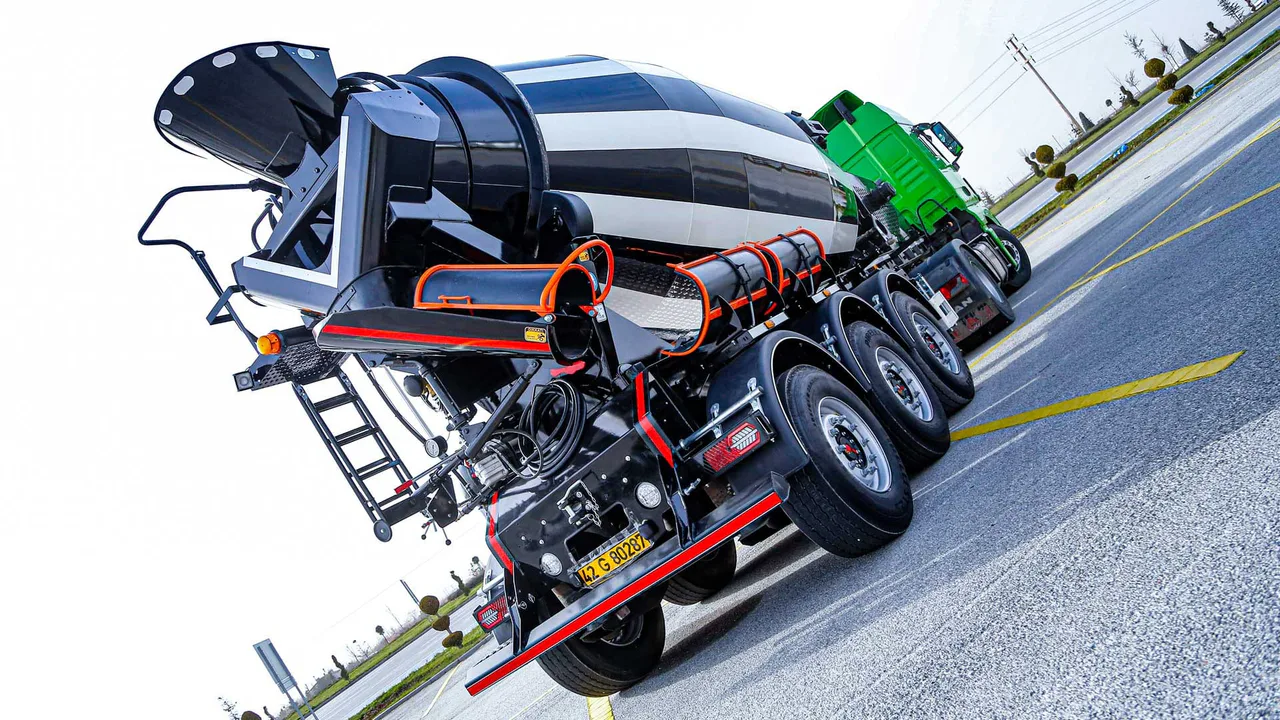

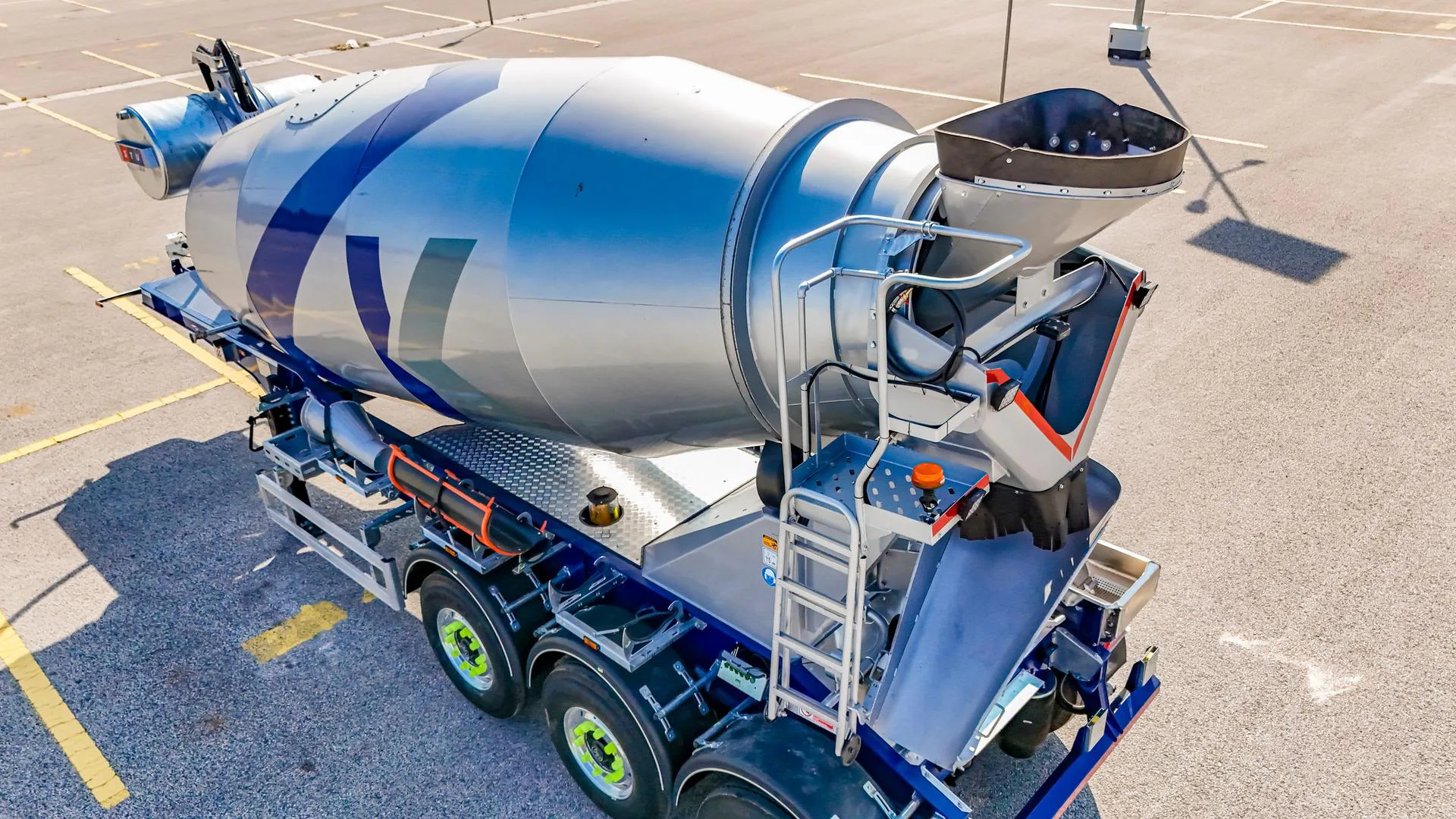

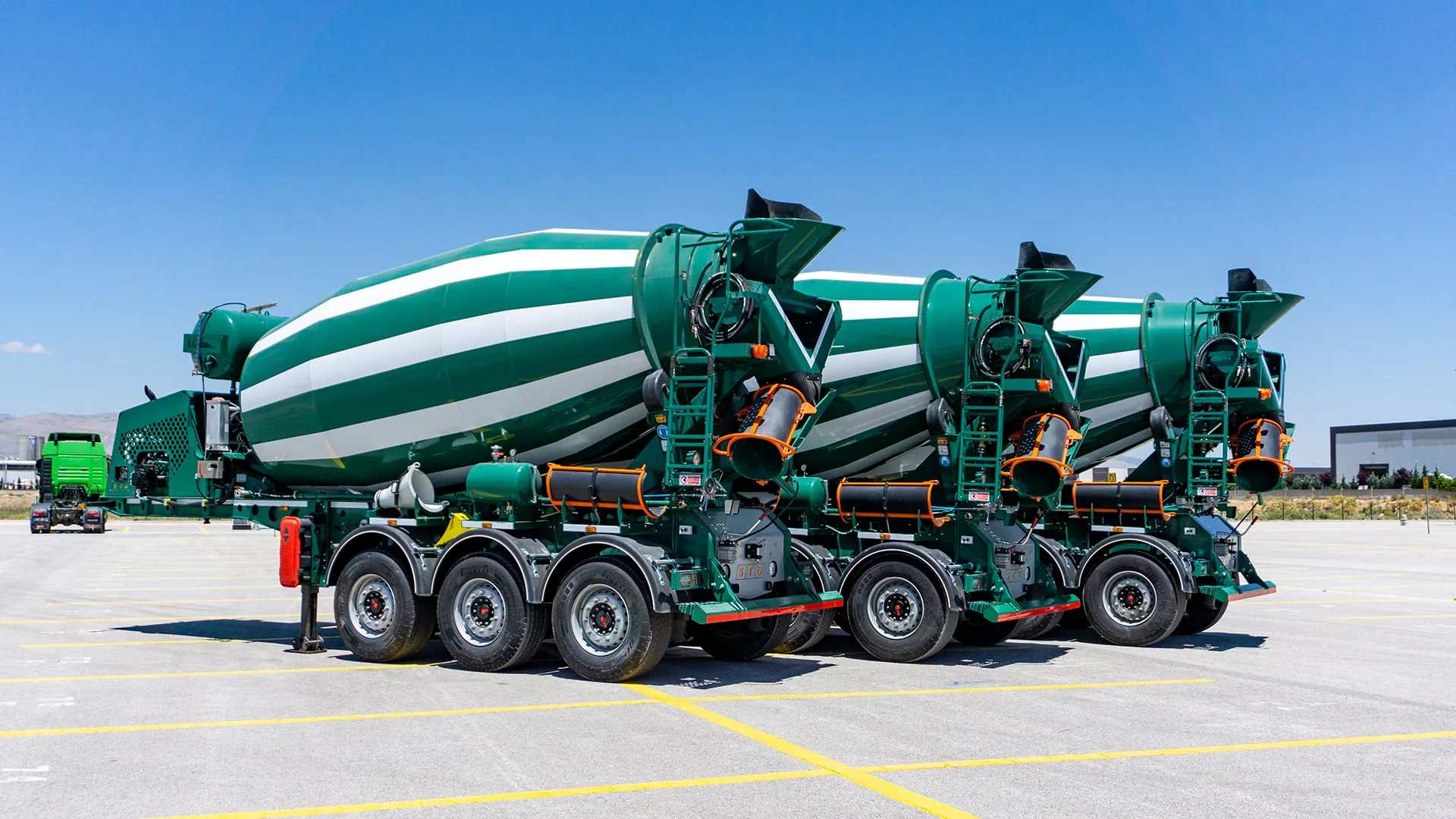

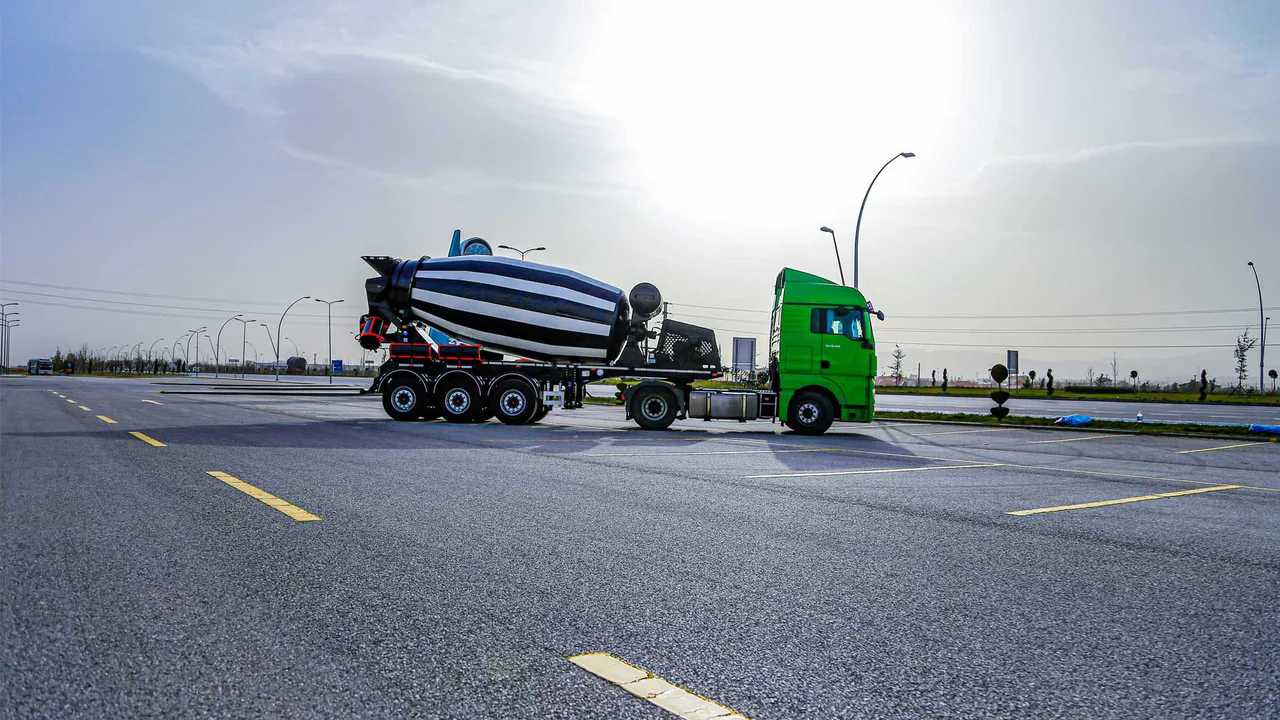

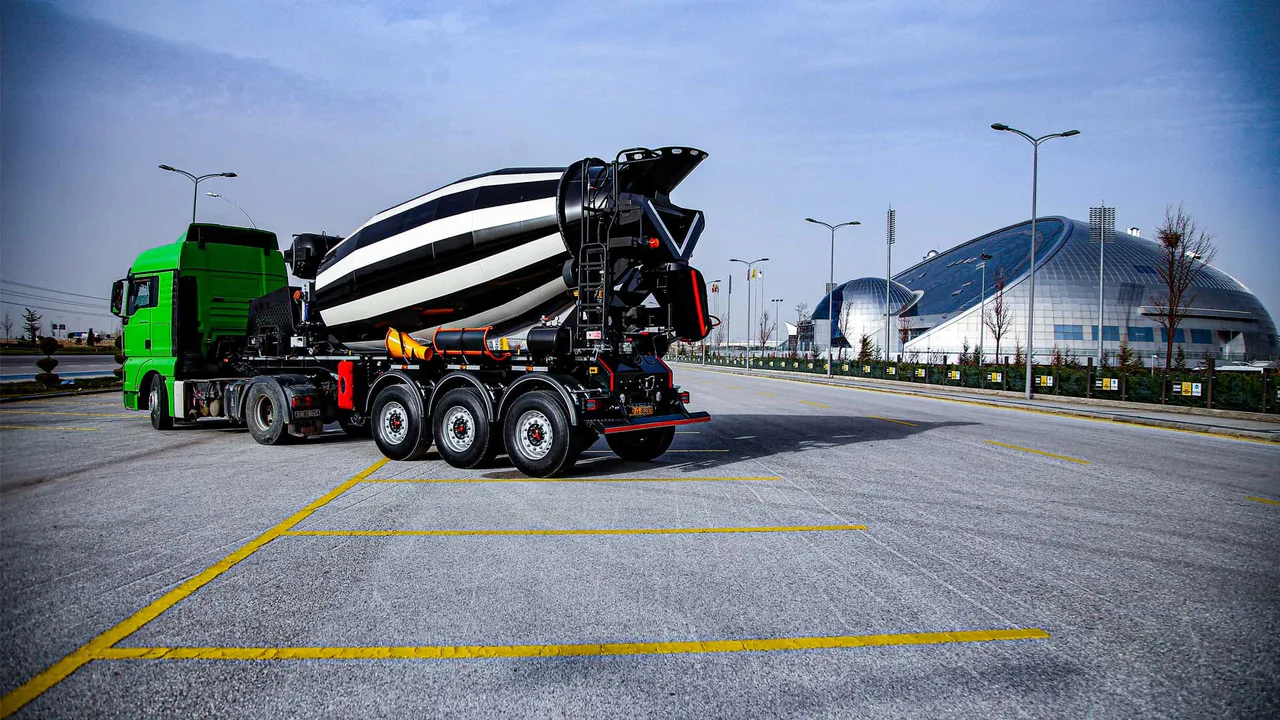

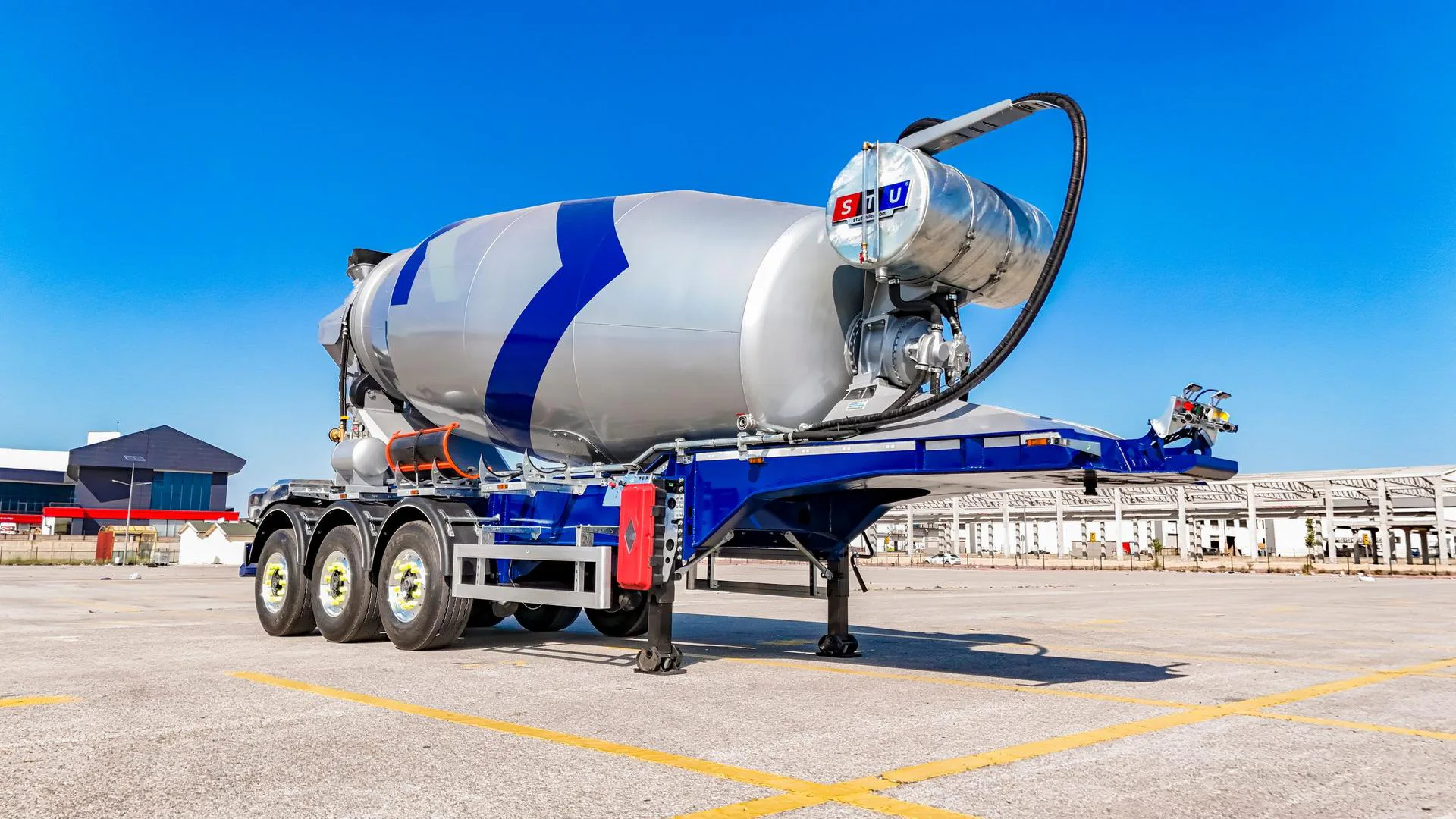

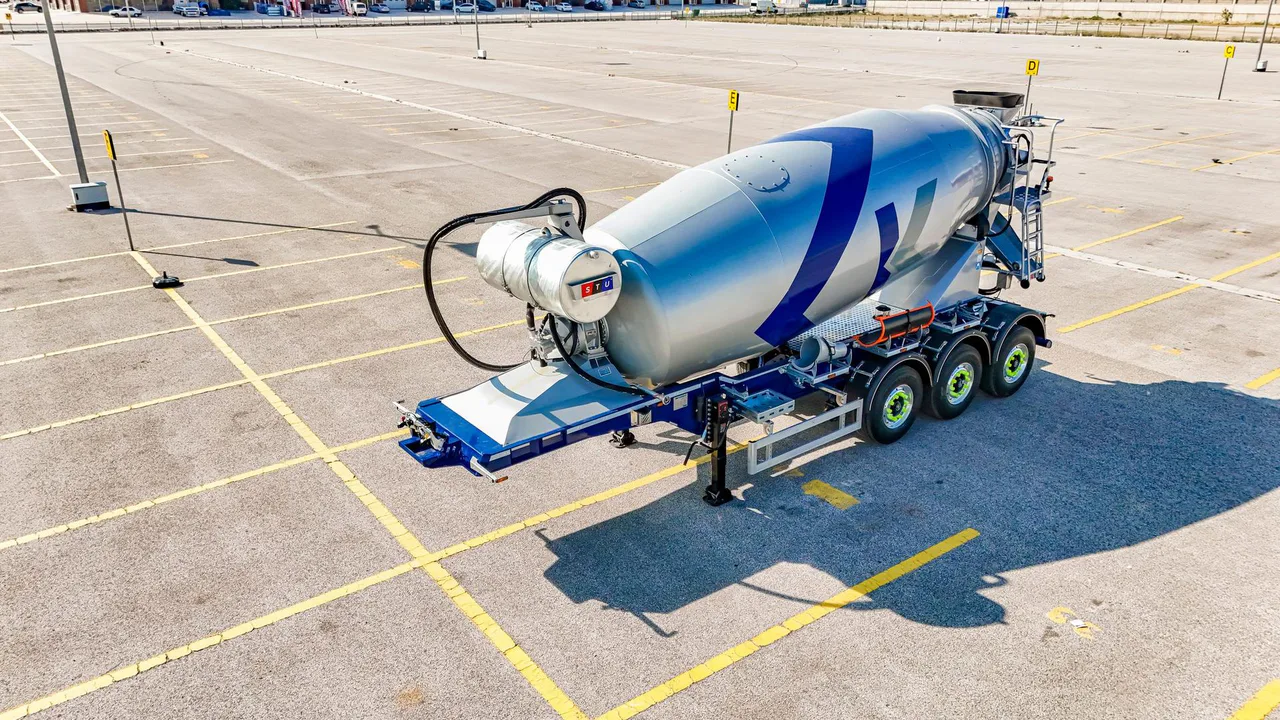

CONCRETE MIXER TRAILER

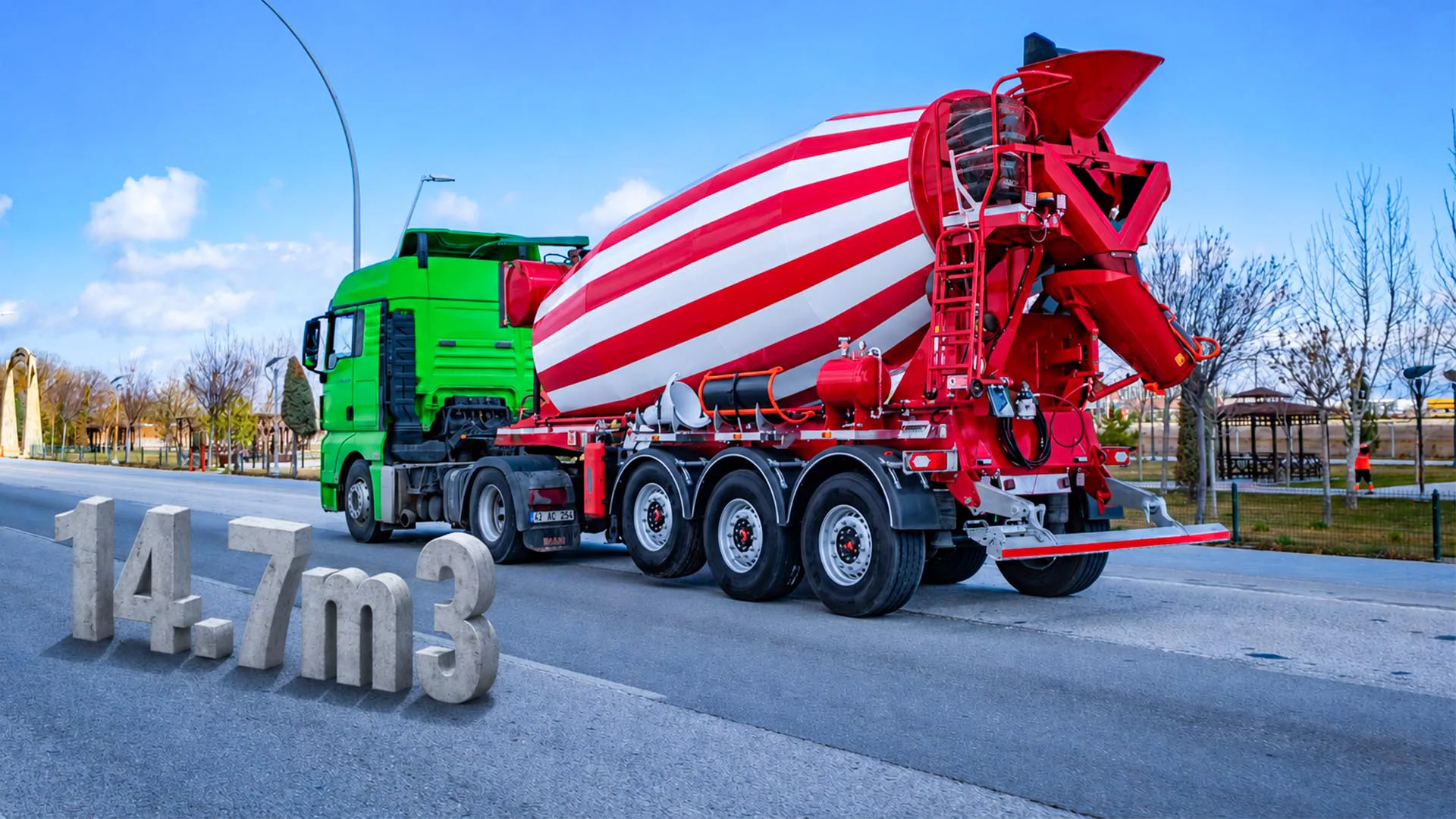

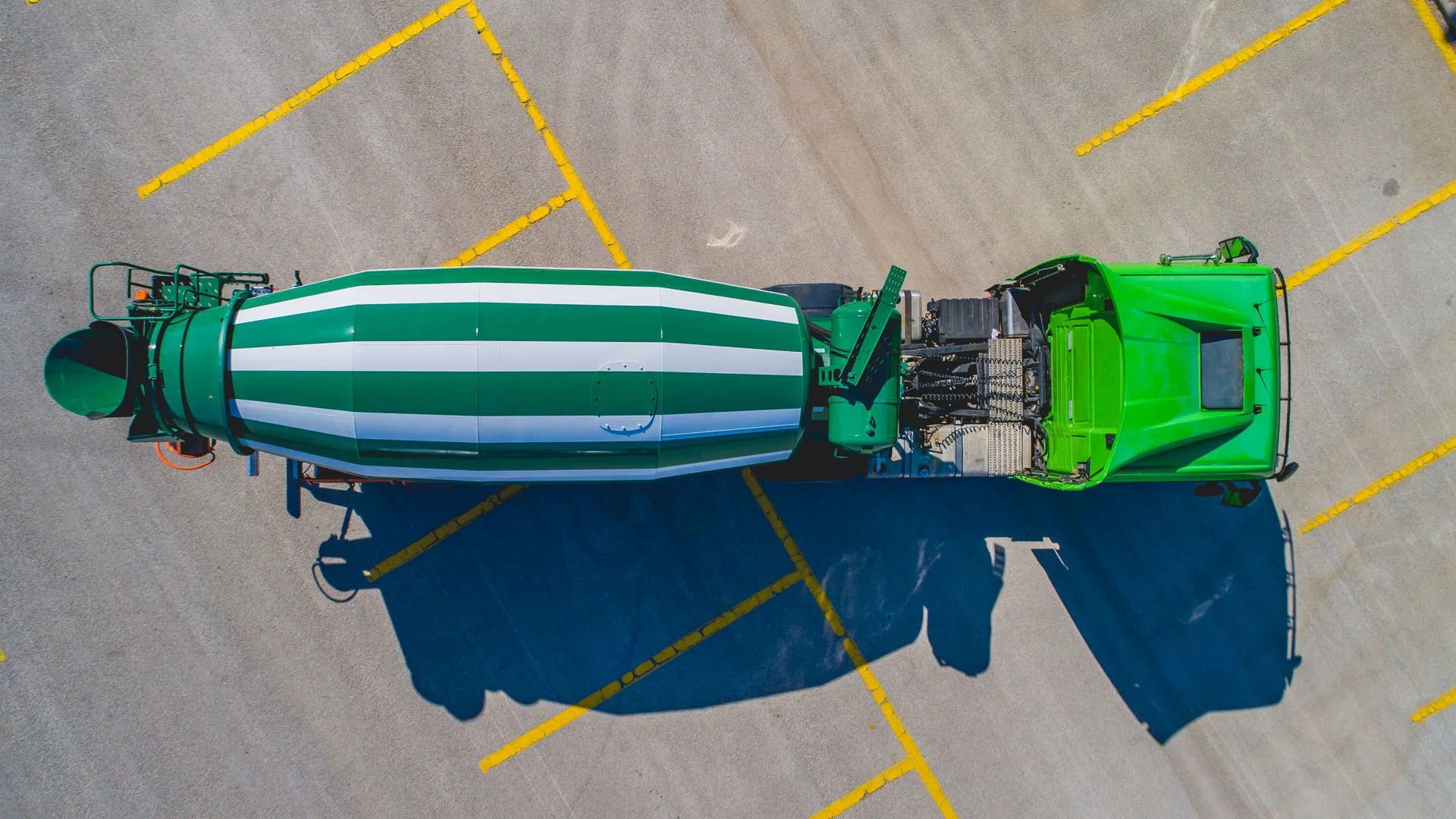

STU Trailers is capable of production concrete mixer trailers with different volumes starting from 9m3, 10m3, 12m3, 14m3 or more.

STU is producing Concrete Mixer Trailers 9-10-12-14 cbm mixer drums as standart production for your construction business.
Drum walls made in 30MnB5 antiwear resistant steel -HB 200/220 N/mm2 (4mm thickness)
Mixing blades made in 30MnB5 anti-wear resistant steel -HB 200/220 N/mm2 (4mm thickness)

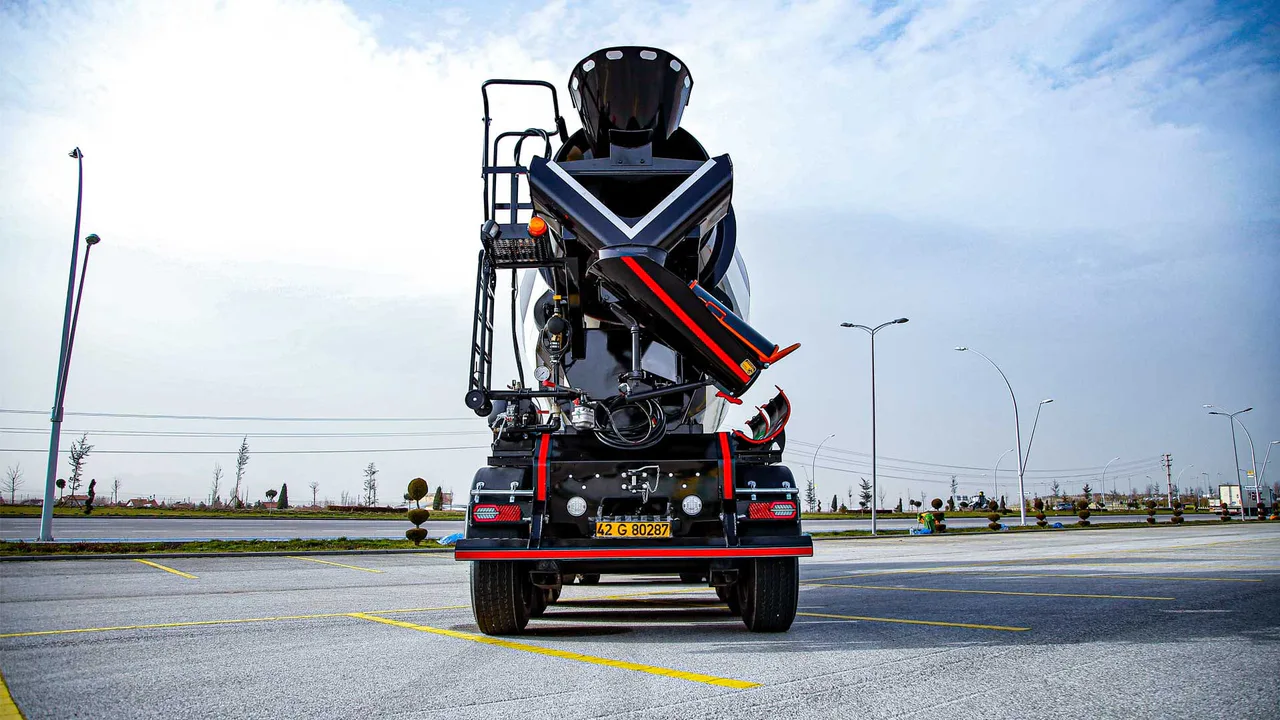

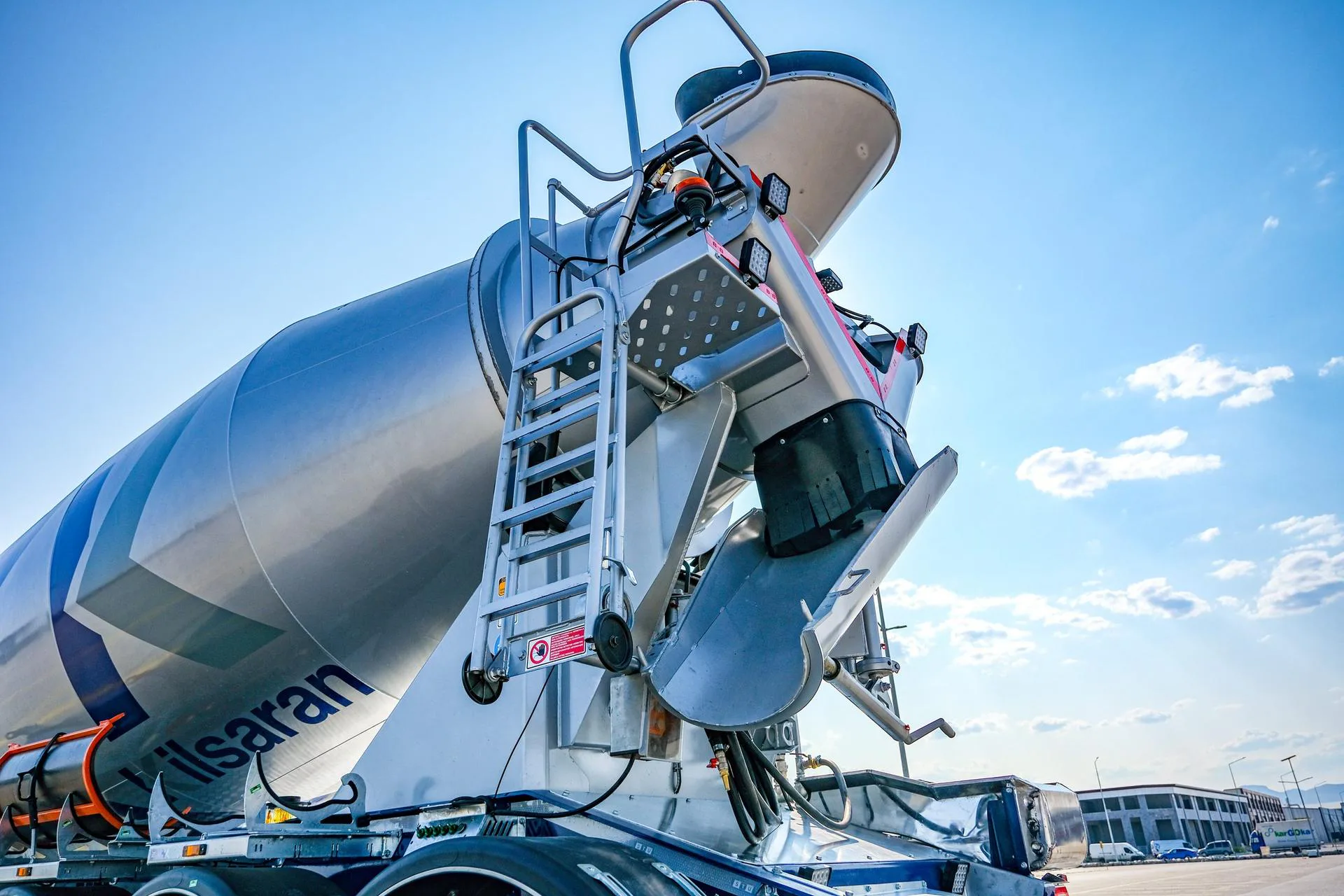

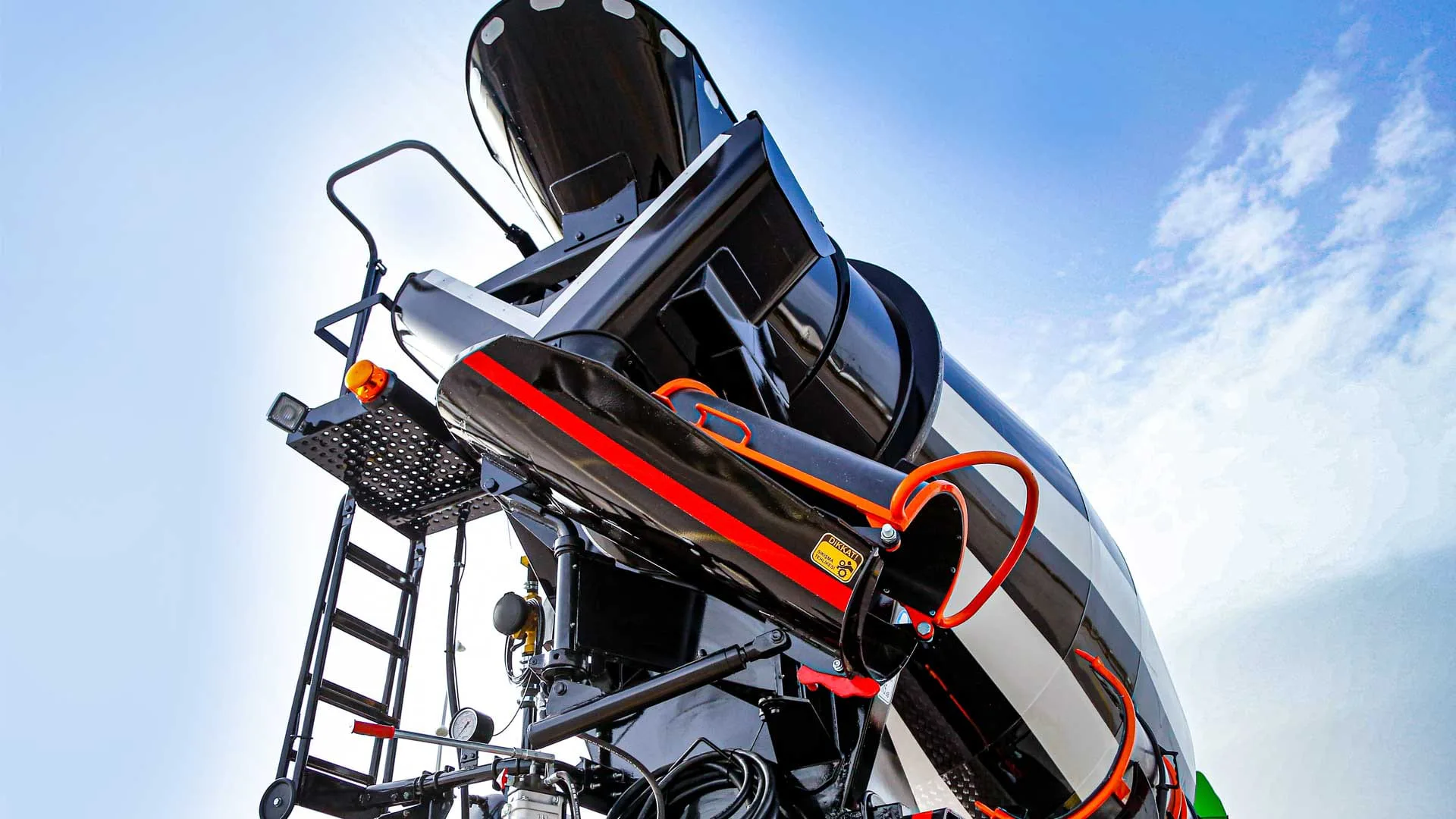

180° swivelling discharging chute with support and mechanical jack for lifting
• 2 Polystone lightweight extension chutes with holders
• Anti-wear resistant plate on discharging hopper

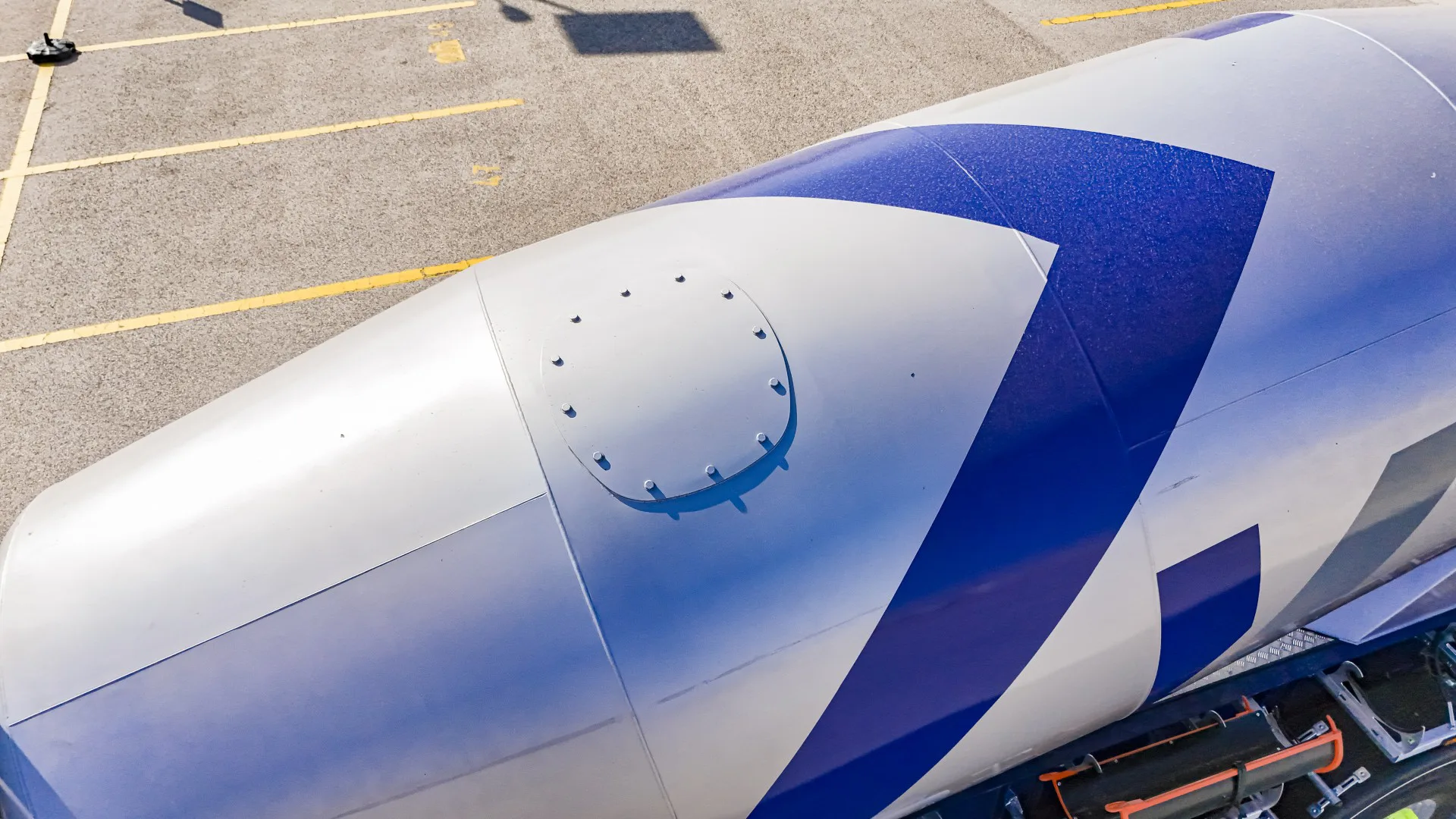

• Inspection manhole
• Inspection ladder
• Wash off hose on ladder pedestal
• Drum lock (for safety maintenance operations)
• 180 X 80 X 8 mm S355J0 TS EN 10219-2
• Carrying rollers made in C45 special steel
• Steel surfaces shot blasted in SA 2,5 grade
• Double primed in antirust painting

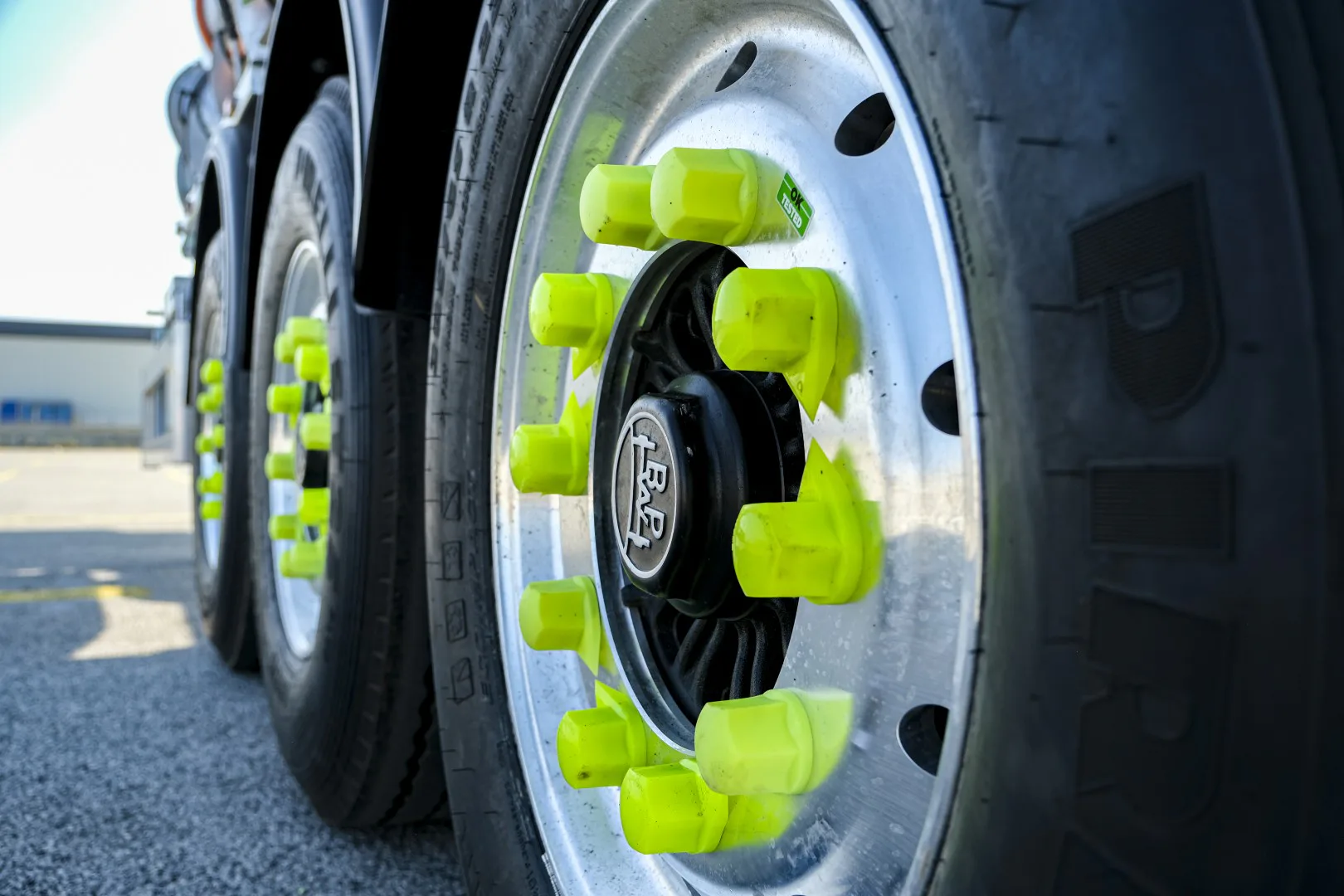

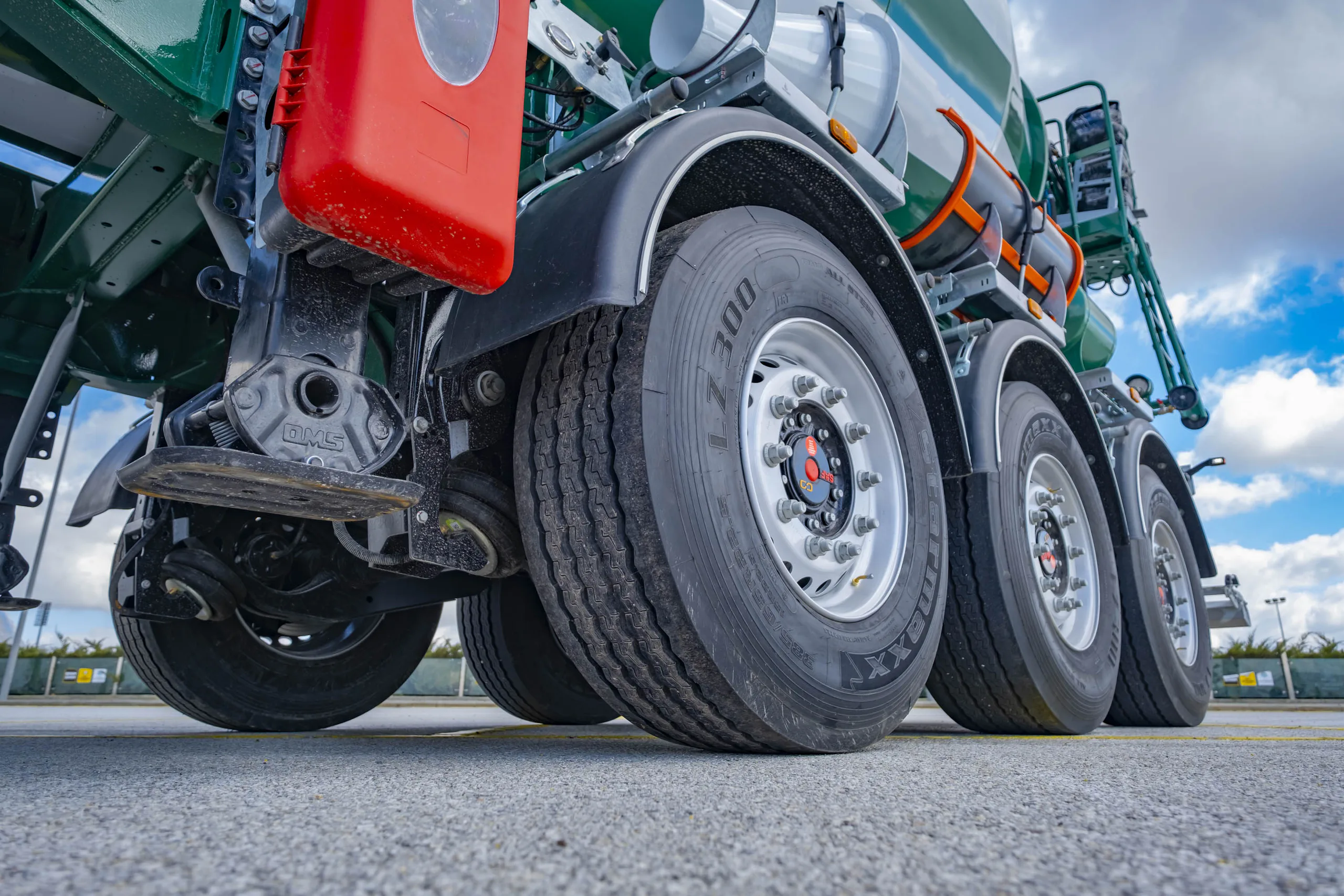

We use popular brands axles for our concrete mixer trailers which are; TRAX, OSMANKOC, MPD, BPW, SAF, VALX, GIGANT axles.
We are using European brands on our concrete mixer trailers like below;
Motion
H version: by P.T.O. on truck engine
Controls

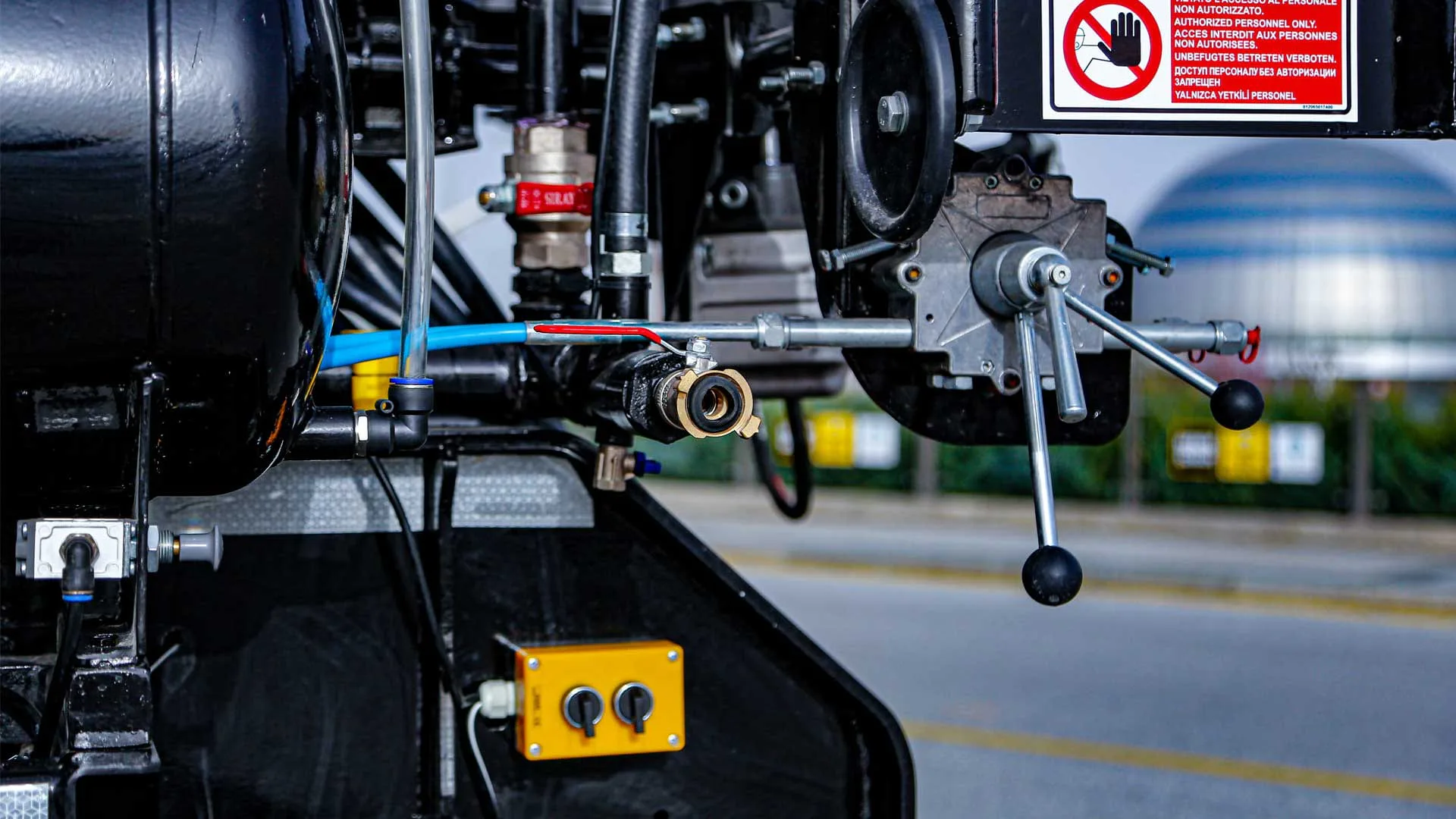

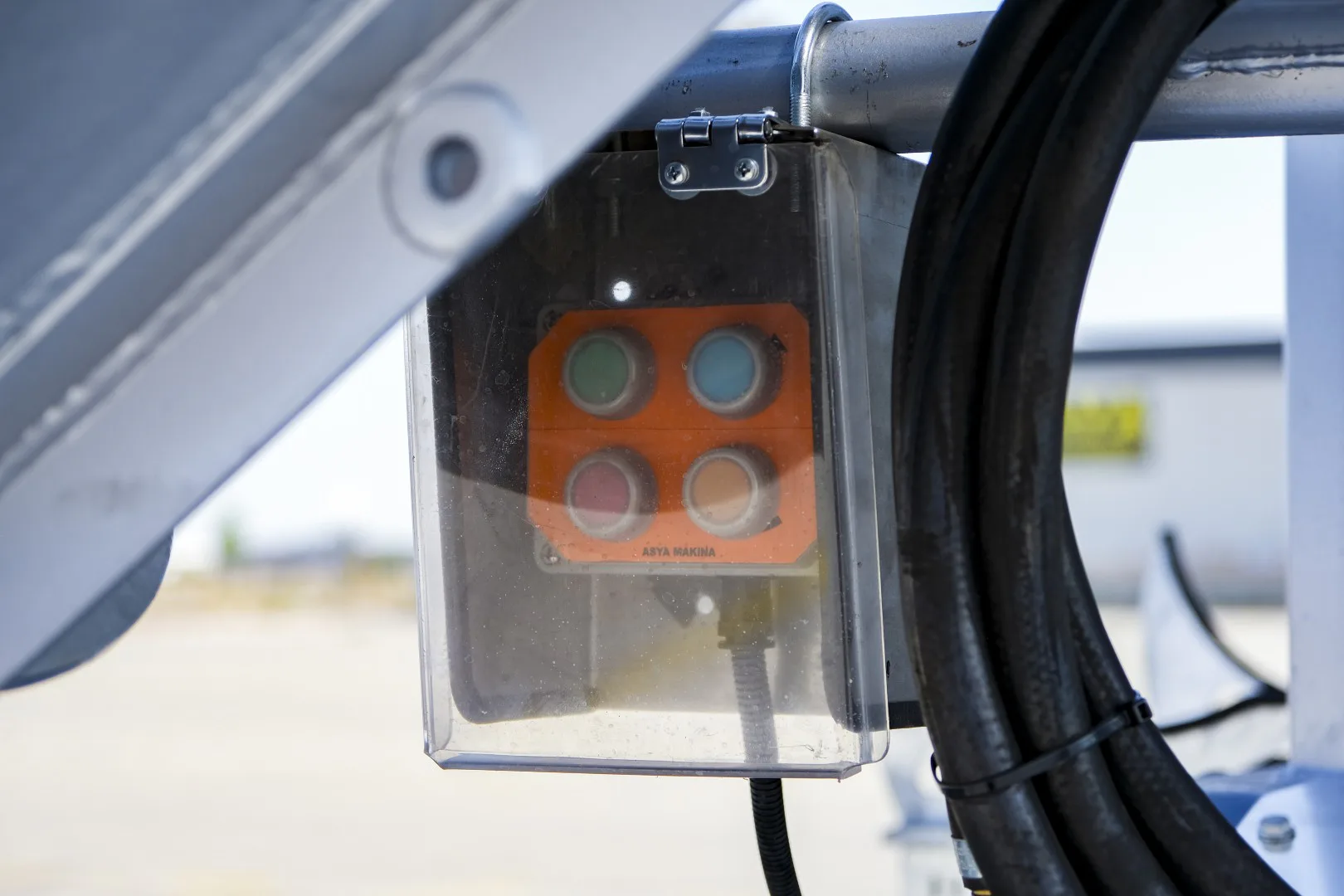

In cabin control and back side with control box
Hydrostatic transmission
Eaton 64 (110 cm3/rev) variable displacement hydraulic pump with 25 cm3/rev feeding pump
Eaton 54 (89.2 cm3/rev) fixed displacement hydraulic motor
LT PMP 2.8 (70.000 Nm) double stage planetary gearbox
AKG integrated oil cooler with 12 lt oil tank, thermostat control and absorption filter

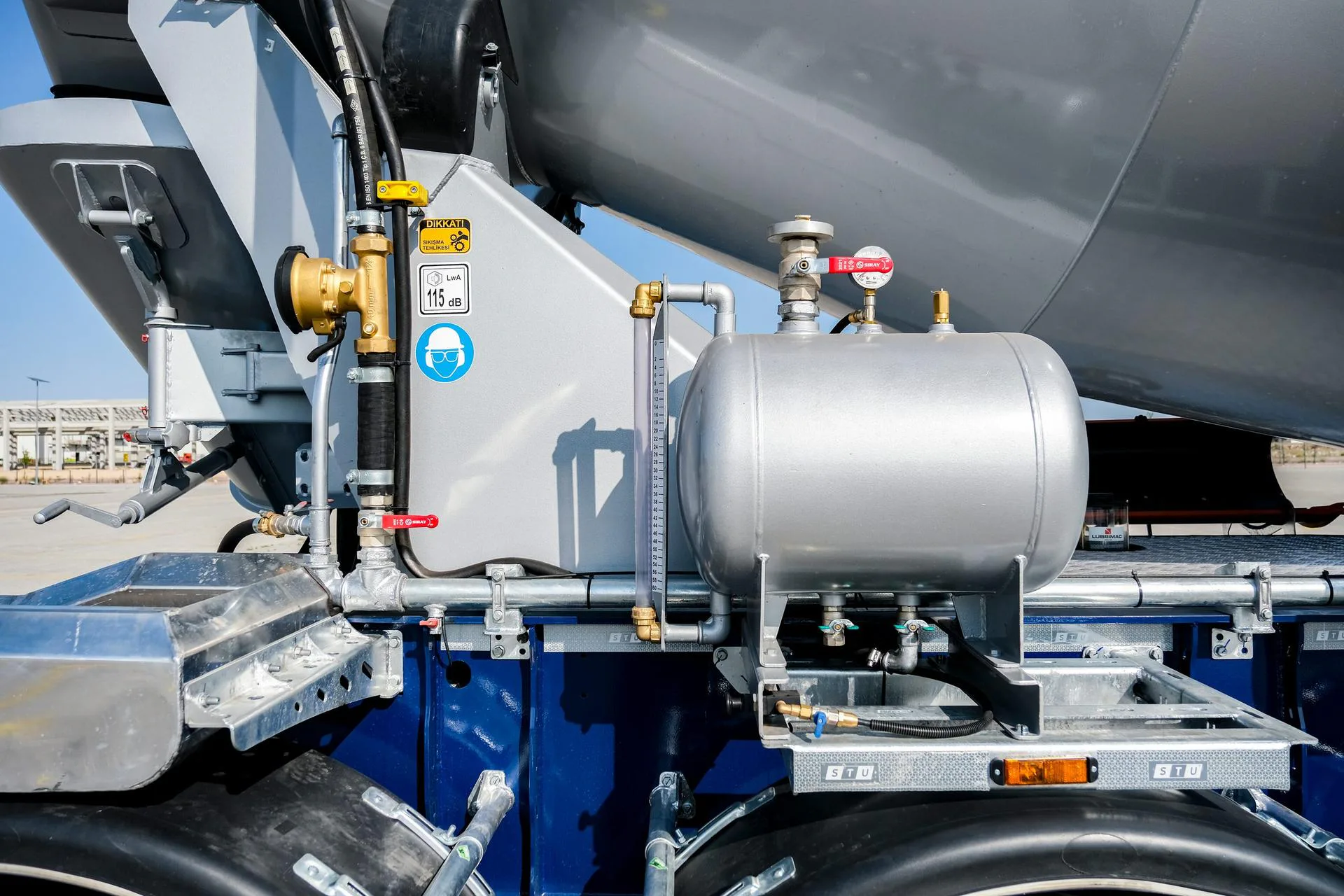

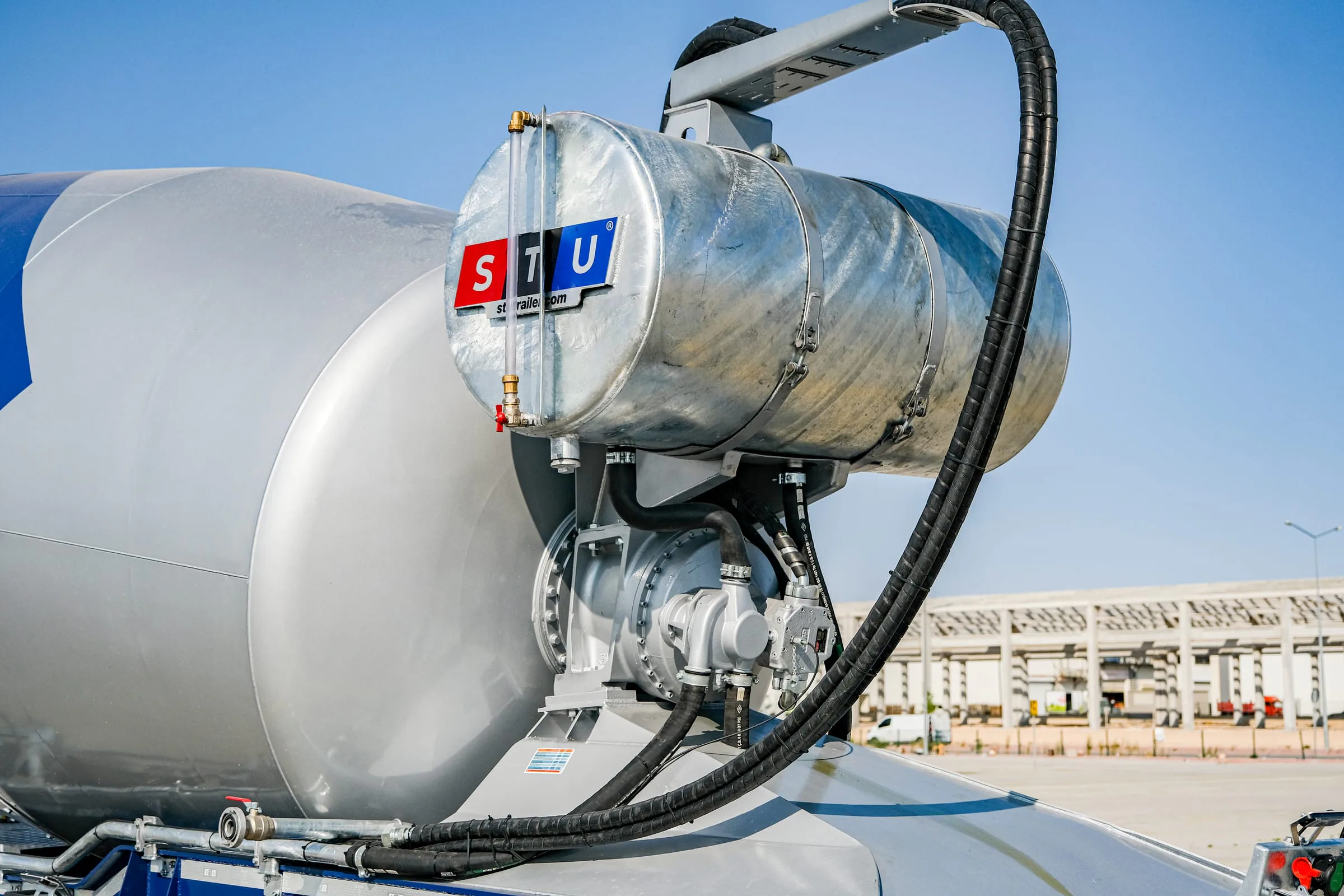

Water system

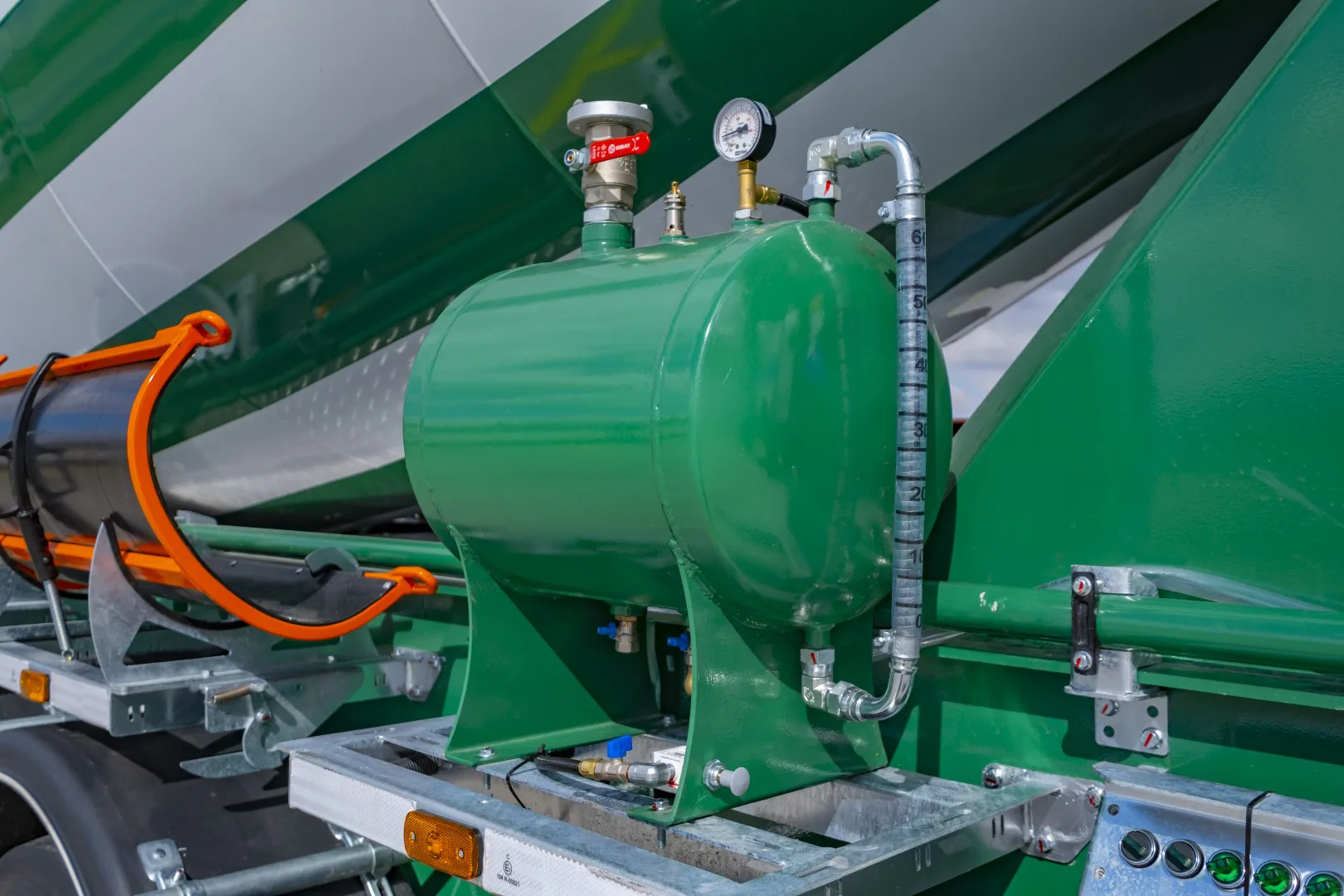

650 lt steel galvanized water tank with indicator and there will be pressure.

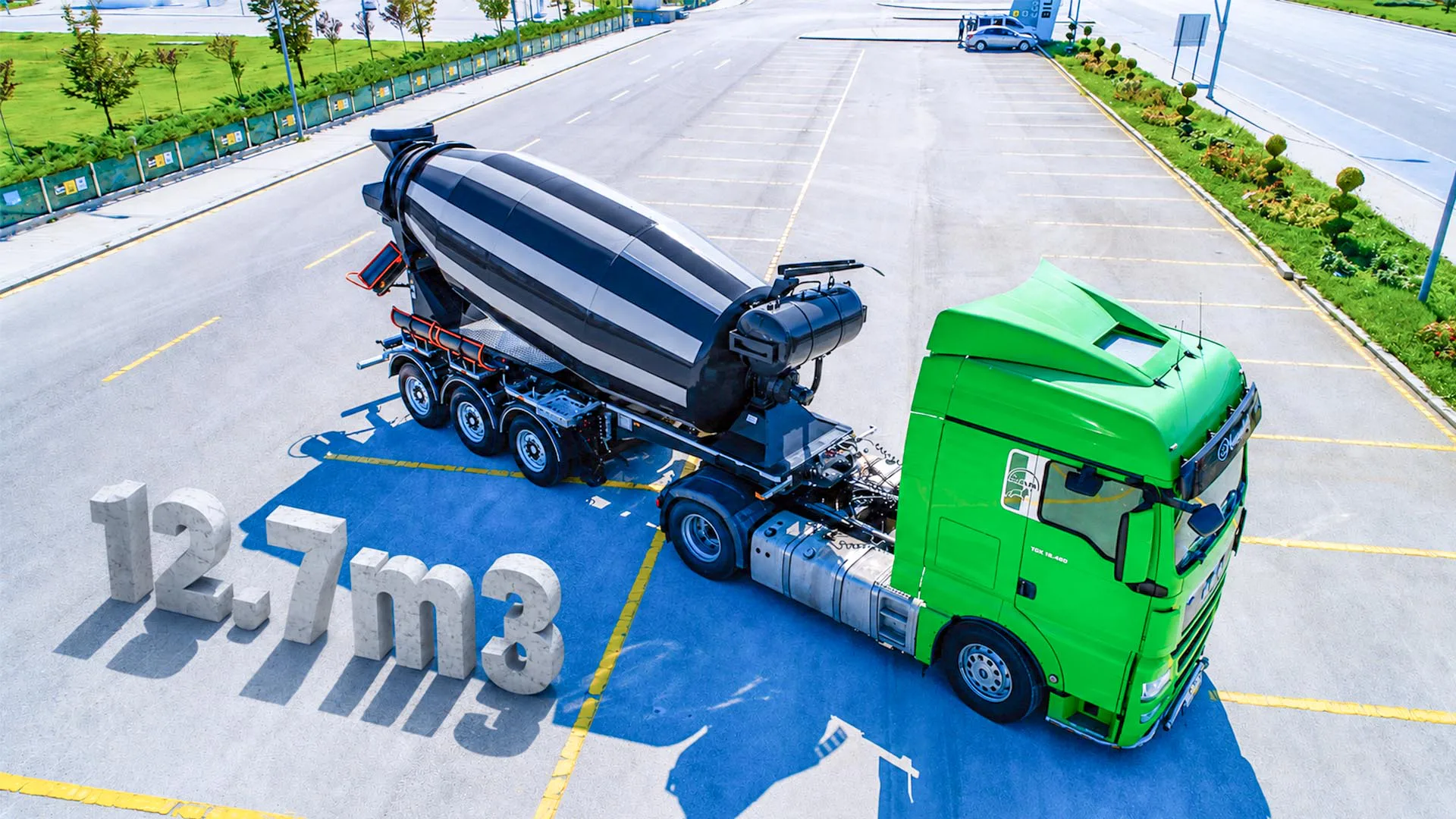

ANTIWEAR RESISTANCE STEEL ON CONCRETE MIXER TRAILER

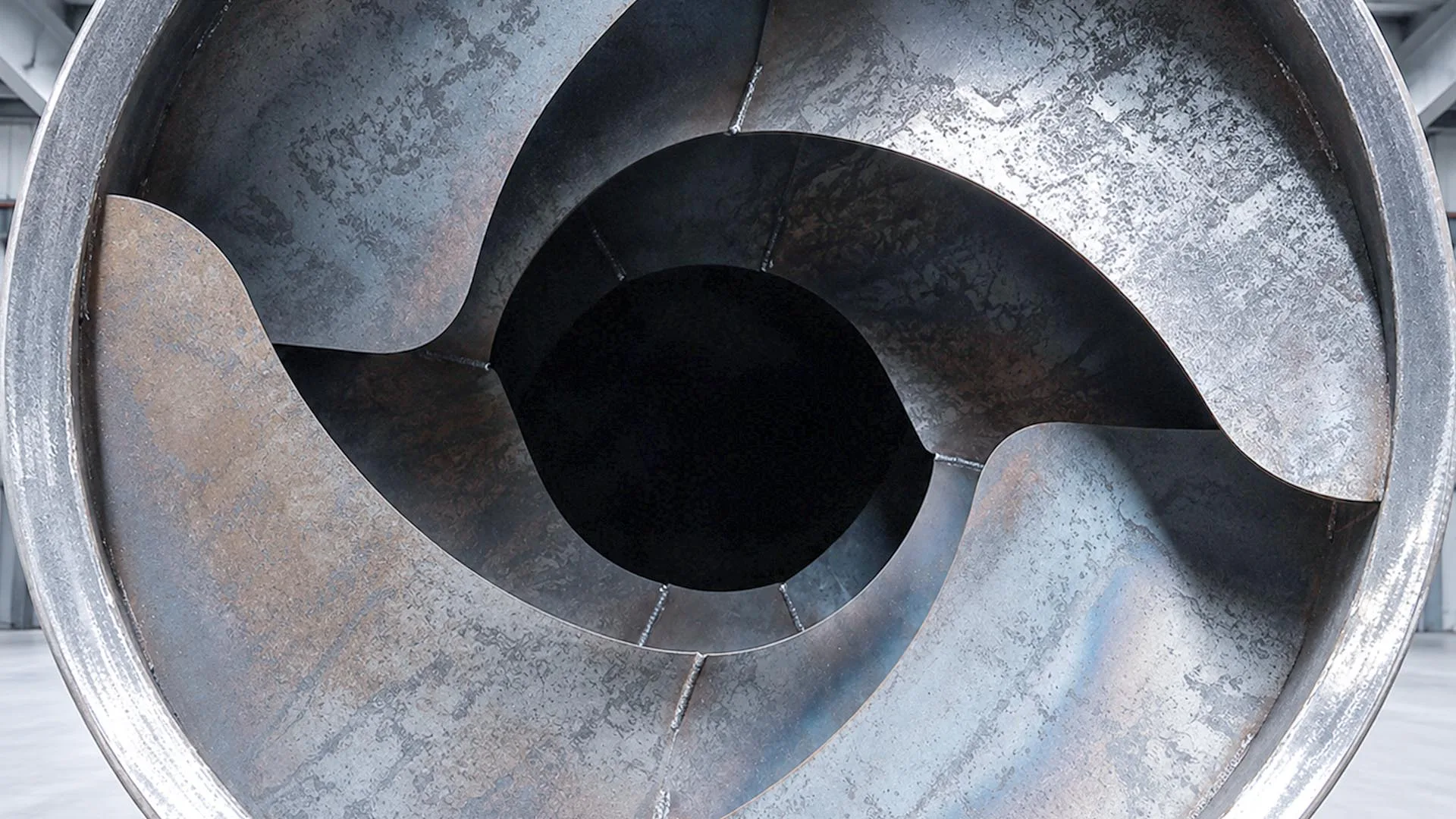

Concrete mixer trailer drum walls and concrete mixer trailer blades made in 30mnb5 STEEL GRADE anti-wear resistant steel with 4mm thickness for long life.

We offer different types of axles for your concrete mixer trailer;
– Double Tyre Jumbo Axle
– Simplify Turnings With Self Steering Axle
– Easy Remote Control With  Hydraulic Steering Axle
We offer different type of suspension systems for your concrete mixer trailer.
  • Air Spring Suspension System
  • Mechanic Leaf Spring Suspension
  • Hydraulic Suspension System

Electronic Braking System (EBS), as the name suggests work with electronic signals. These electrical signal then is transmitted to the central module. According to the vehicle’s load situation, the system calculates the appropriate pressures for the individual brake cylinders, causing deceleration of the vehicle. The valves on the brake cylinders generate the required braking pressure according to the control signals.

Anti-lock Braking System (ABS) prevents the wheels from locking up during heavy and sudden braking, avoiding uncontrolled skidding. ABS utilizes wheel speed sensors to determine if one or more wheels are trying to lock up during braking. If a wheel tries to lock up, a series of hydraulic valves limit or reduce the braking on that wheel. This prevents skidding and allows to maintain steering control.

STU Trailers offers WABCO or Knorr-Bremse EBS System on your tipper trailers.

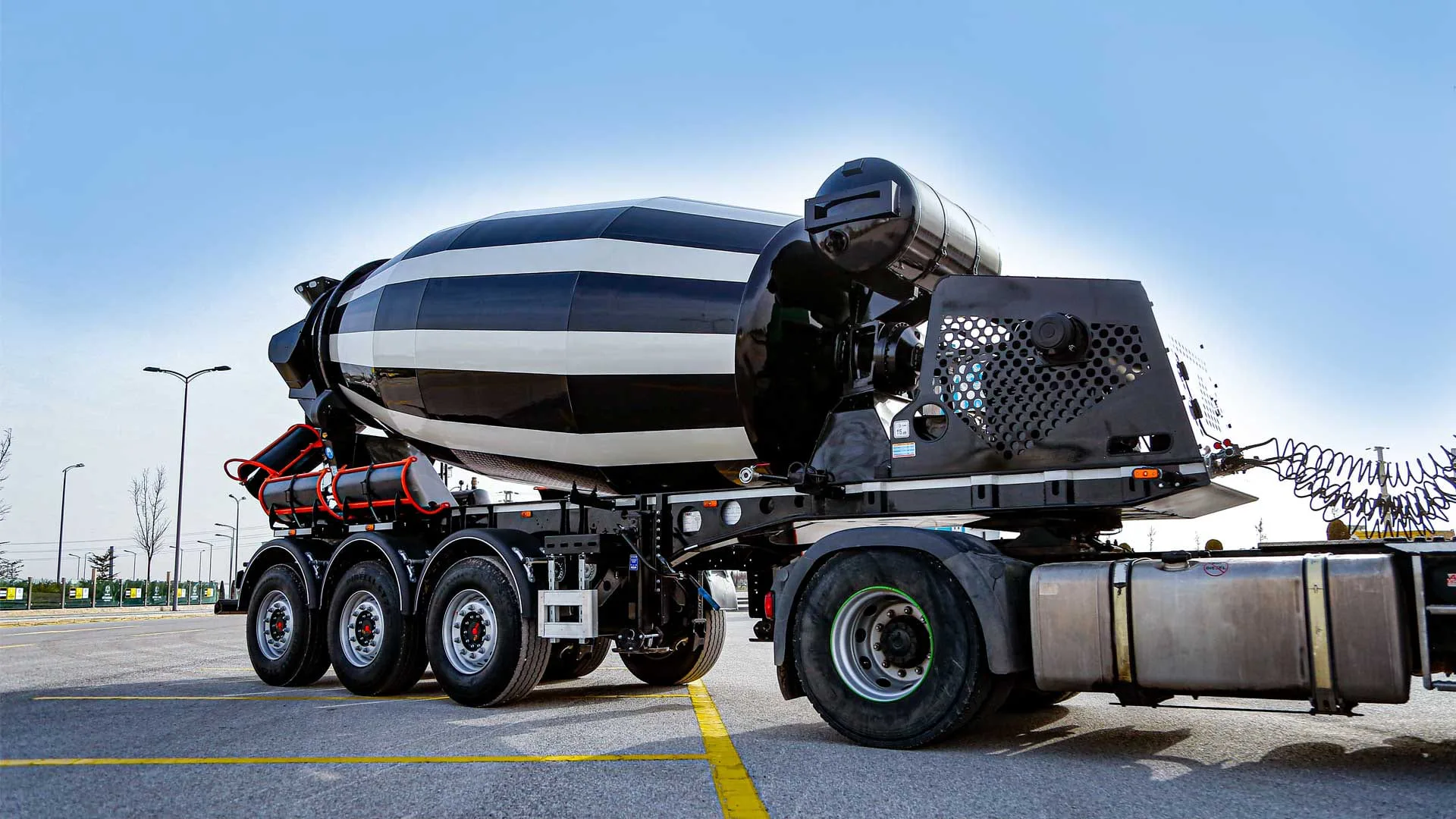

STRONG CHASSIS FOR LONG LIFE CONCRETE MIXER TRAILER

For long life and under heavy conditions we have a strong chassis productions.

STU TRAILERS® always keep stocks for our valuable customers in it’s spare parts division like axle parts, electrical system parts.. in warranty period and after warranty period too. On the other hand we are working with world wide brands  which have their own warranty period separately than STU TRAILER’s warranty like WABCO or Knorr EBS Systems, Dasteri, Varroc, SABA Electrical Systems..

STU TRAILERS® produce and export his semi trailers more than 45 countries which are European Union Countries, Africa, South America and Far East Countries. We are working directly with shipping lines regularly and get the best shipping rates from our agencies.
STU TRAILERS® has different kinds of solutions for your orders;

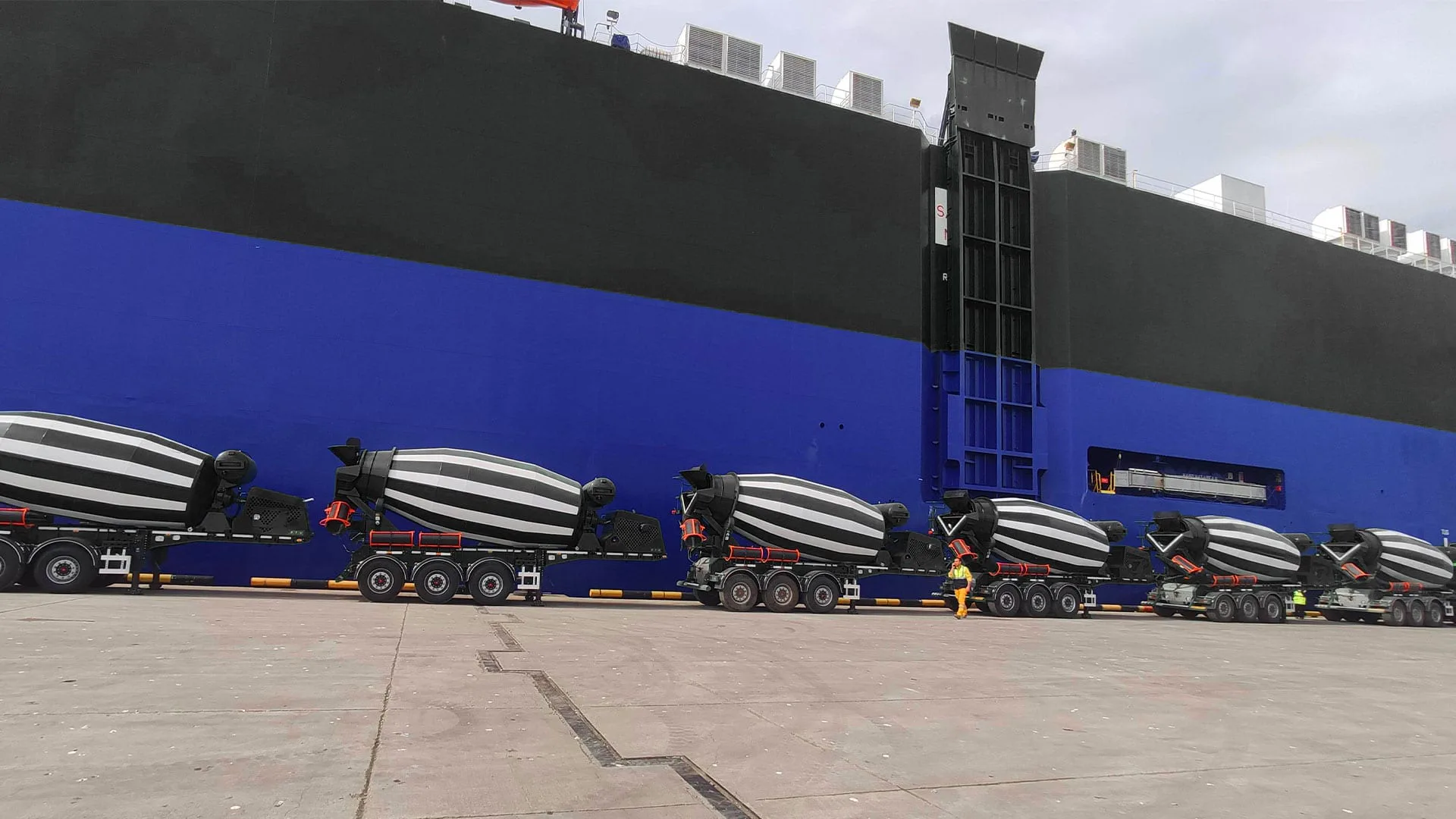

  • Maritime Transport- RO-RO Shipment
  • Highway Transportation with Truck

DID YOU TRY HARDOX DRUMS ON CONCRETE MIXER TRAILERS?

Regarding to your demand we will be happy to produce drums from HARDOX® steel grade which is wear plate for extreme abrasion resistance makes enjoyable your construction business with our concrete mixer trailer.

SIMPLIFY TRANSPORTS WITH ACCESSORIES

10cbm-Concrete-Mixer-Trailers---Additive-Tank---STU-Trailers-
40 LT. ADDITIVE TANK

There are two options, 40lt and 60lt on additive tanks on chassis of concrete mixer trailer.

Concret-Mixer-Trailer-Oil-Cooler-Radiator-STU-Trailers
OIL COOLING RADIOTOR

AKG integrated oil cooler with 12 lt oil tank, thermostat control and absorption filter is used on concrete mixer trailer.

Concret-Mixer-Trailer-6-Cylinder-Power-Engine2--STU-Trailers

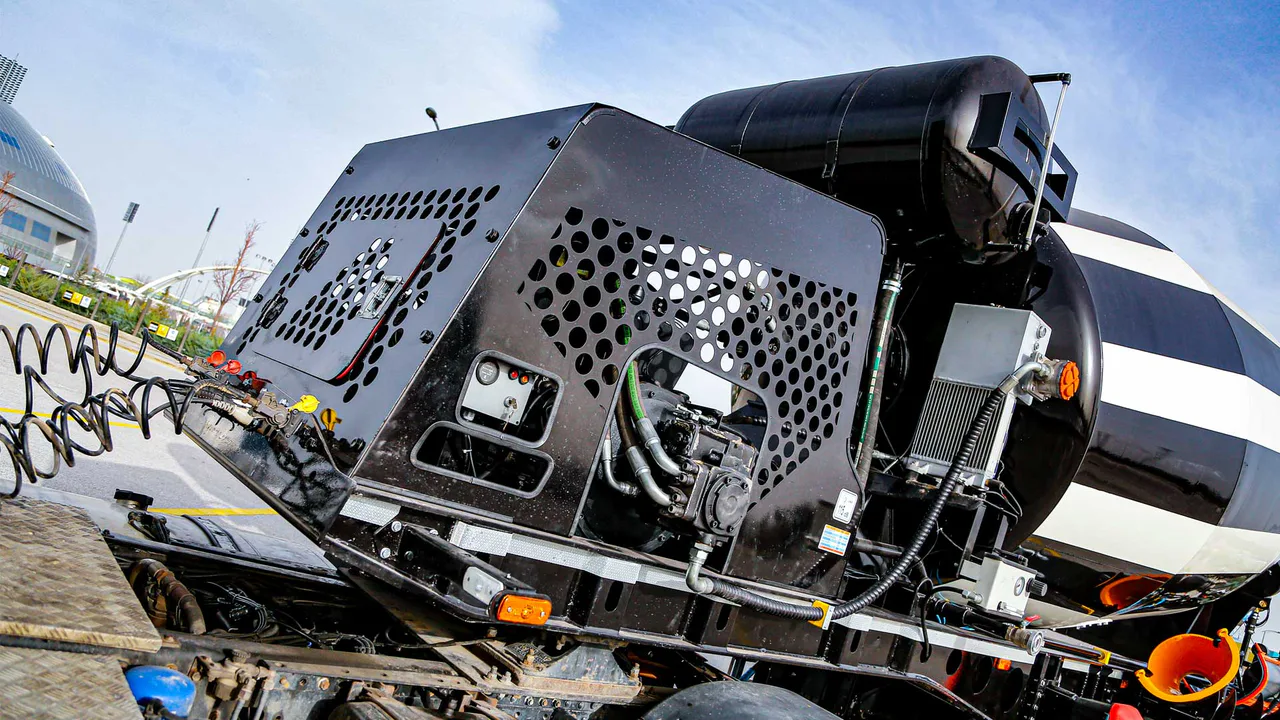

6 CYLINDER DIESEL ENGINE

Deutz brand 6 Cylinder diesel engine share it's power with concrete mixer trailer drum for movements where you need.

Remorque-Bétonnière---PMP-Brand-Hydraulic-Pump---Stu-Trailers
HYDRAULIC PUMP - MOTOR

Eaton 64 (110 cm3/rev) variable displacement hydraulic pump with 25 cm3/rev feeding pump Eaton 54 (89.2 cm3/rev) fixed displacement hydraulic motor LT PMP 2.8 (70.000 Nm) double stage planetary gearbox on concrete mixer trailer.

CONCRETE MIXER TRAILER SPARE PARTS ARE AVAILABLE.

Here some spare parts for your concrete mixer trailer; Mixer Drum with different volumes, hydraulic pumps, water pumps, oil cooler, roller for drum, extension chut for unloading concrete, discharge chut holders, water meter, valves, balance balls.

In our standarts we use on chassis ST52 Steel Grade. For our light models we are also able to use MC700 Steel which we are using on our lowbed trailers. BRAKE System powered by WABCO or Knorr-Bremse EBS

ALL CONSTRUCTION BUSINESS NEED THIS CONCRETE MIXER TRAILER

Extra funnel chute, pressurized water tank and other spare parts are in our stocks for your mixer trailers.

In our standarts we use on chassis ST52 Steel Grade. For our light models we are also able to use MC700 Steel which we are using on our lowbed trailers. BRAKE System powered by WABCO or Knorr-Bremse EBS

ALL SPARE PARTS ARE AVALIABLE FOR CONCRETE MIXER TRAILER

Extra funnel chute, pressurized water tank and other spare parts are in our stocks for your mixer trailers.

In our standarts we use on chassis ST52 Steel Grade. For our light models we are also able to use MC700 Steel which we are using on our lowbed trailers. BRAKE System powered by WABCO or Knorr-Bremse EBS
